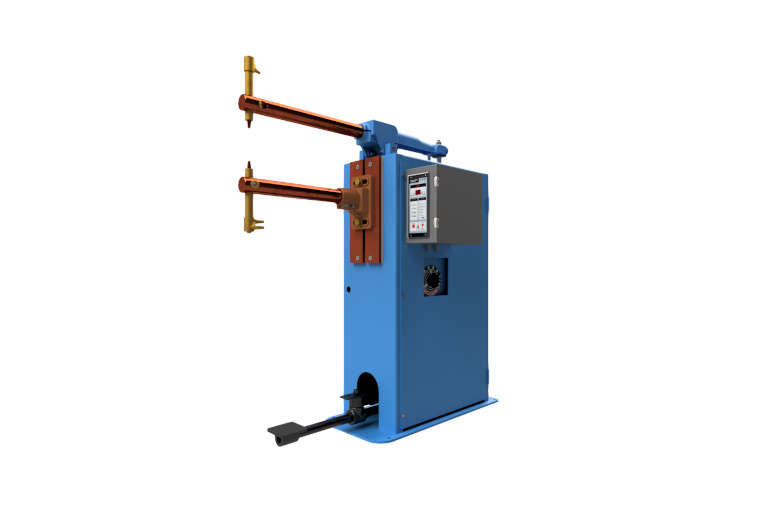

MODEL F-TC

The Model FT-C is a medium duty foot operated rocker arm type spot welding machine with a built-in control as standard equipment. This machine provides such features as a foot lever system which develops the welding pressure with only a few pounds at the lever. A 4" pull-out adjustment of the top welding arm, a vertical adjustment of the lower arm, ejector type water cooled electrodes, side panels hinged for easy access to the machine interior, a separate compartment built into the frame to house the electrical controls and a frame size designed to save valuable floor space. 2" diameter solid copper arms drilled at 90° and 30° on one end.

This machine provides automatic weld current timing to assure accurate and consistent spot welds. A machine of great versatility equally adaptable for the small shop.

All Welding Machines are available in 208, 220, 440, and 550 Voltage configurations.

The model F-TC is available in the following KVAs: 20, and 25

Features

Arm Adjustments

Arm spacing 5 1/2" minimum to 13 1/2"maximum 4" pullout of top arm.

8" vertical.

The arms are adjustable for parallel operation allowing the use of the flat faced tips for cross wire and projection welding.

Electrodes

1" diameter x 8" ejector type water cooled tip holders for number 1 Morse Taper electrodes or special types can be supplied.

Frame

Heavy steel construction with swinging side panels.

Base 14"x 30"; height 41"; width 12"; length 30".

Heat Selector

Rotary tap switch for 8 heat ranges.

Transformer

CSA approved, rugged, water cooled for continuous production, at 50% duty cycle RWMA standards.

Welding Arms

2" solid copper machined to W-O-M specifications to clamp electrode holders at 30° and 90°.

Welding Controls

The Model F-TC comes equipped with an Alpha Control, controlling time and percentage heat for more consistent spot welds.

Specifications

RATED KVA THROAT DEPTH MAX TIP OPENING C.R. STEEL GA. STAINLESS GA. GALV. STEEL GA. L.C. STEEL ROD GA. APPROX SHIPPING WEIGHT
